Product Details:
|
| Power Source: | AC | Input Power: | ≤600W |
|---|---|---|---|
| Voltage: | 220V/50Hz（198V-242V） | Lock-up Pressure: | ≥800KPa@198V/50Hz |
| Rated Pressure: | 700KPa | Rated Flow: | ≥2.2 M3/h@700KPa@220V/50Hz |
| Noise Level: | ≤ 64.5dB(A) | Ambient: | 5~40℃ |
| Insulation Class: | B | Thermal Switch: | Auto-reset 145±5℃ |
| Net Weight: | 7.5Kg | Restart Pressure: | 0 Kpa |
| High Light: | 220V 50Hz Oil Free Dental Compressor,Oil Free Dental Compressor 630W,630W Beauty Compressor |
||

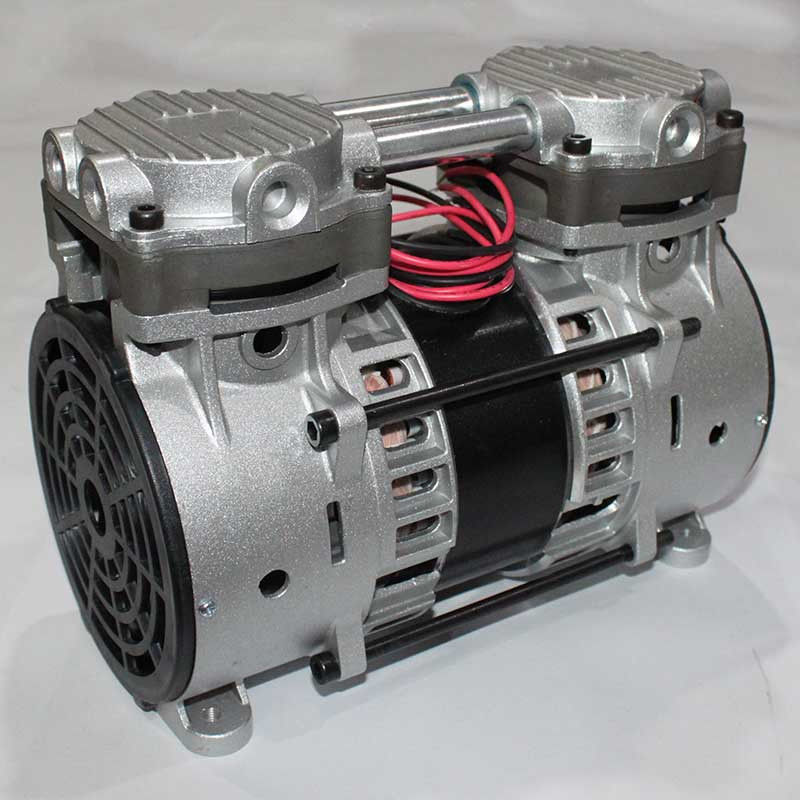

ZW500A-40/7-(3) , 220V/50Hz , 630W , GSE compressor for dental , beauty industries
Product Descriptions:
Dental air compressor features: the motor directly drives the compressor, so that the crankshaft produces rotating motion, driving the connecting rod makes the piston produce reciprocating motion, causing the cylinder volume change. Due to the change of the pressure in the cylinder, the air through the intake valve through the air filter (muffler) into the cylinder, in the compression stroke, due to the reduction of the cylinder volume, the compressed air through the exhaust valve, through the exhaust pipe, check valve into the tank, when the exhaust pressure reaches the rated pressure 700kpa,the pressure switch control automatic stops.
Specifications:
| Model | ZW500A-40/7-(3) |
| Rated Voltage(V) | 220V/50Hz |
| Input Power(W) | ≤600W |
| Rated pressure(kPa) | 700KPa |
| Rated flow(m3/h) |
≥2.2 m3/h@700KPa@220V/50Hz |
| Ambient(°C) | 5~40℃ |
| Insulation class | B |
| Thermal protector | Auto-reset 145±5℃ |
| Net weight(Kg) | 7.5Kg |
| Restart pressure(Kpa) | 0kPa |
Features:
1. Double pistion
2. Oil-less operation
3. long life bearing
4. High performance cup seal
Advantages:
1. Clean air source
2. Maintenance-free
3. long life
